Aluminium Sub Frame

From €505.13 exVAT

✓ Shipping: Ireland & EU Wide (Blind / White Label Drop-shipping Available).
✓ Turnaround: 5-8 Working Days Standard Production.
✓ Collection: Free Trade collection available (Dublin Workshop).
✓ Installation: Professional installation service available (Ireland & NI).

Product Overview

Structural aluminium frames designed to support folded ACM fascia panels. We do not hold stock. You provide the overall dimensions, and we fabricate the unit.

The outer perimeter is constructed from 25mm x 25mm aluminium square tubing (box section) for rigidity. As the box section cannot be directly face fixed, we weld aluminium angle brackets into each corner to create accessible fixing points for wall bolts. Internal vertical rails are fabricated from aluminium angle to provide clearance for these fixings. Frames exceeding 3000mm in length are manufactured in modular sections to ensure fitment in standard transport vehicles.

Technical Specifications

Size: Custom. Built to your exact dimensions.
Perimeter Material: 25mm x 25mm Aluminium Square Tubing (Box Section).
Internal Material: 25mm x 25mm Aluminium Angle (Inset for fixing clearance).
Fixing Points: Welded angle brackets located in all corners for wall mounting.
Construction: 100% Aluminium. Fully MIG welded.
Finish: Mill Finish Aluminium (Standard).
Option: Powder Coating available on request.
Logistics: Units >3000mm supplied in bolt together sections for transport.

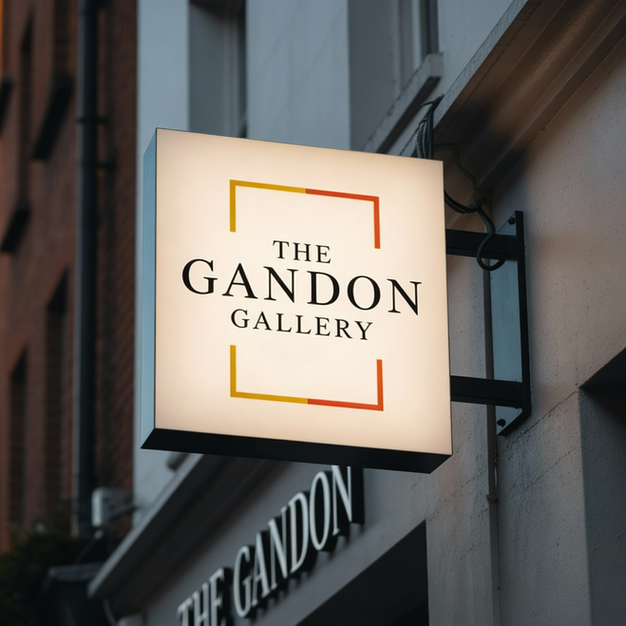

Usage: Sub structure for ACM Trays, projecting signs, or cladding.

Get a Quote: Please submit your vector file and specifications to receive a formal estimation. As every set is custom-built, pricing is calculated based on material usage, stroke width, and fabrication time.
