Built-Up Face Illuminated Letters

From €78.34 exVAT

✓ Shipping: Ireland & EU Wide (Blind / White Label Drop-shipping Available).
✓ Turnaround: 5-8 Working Days Standard Production.
✓ Collection: Free Trade collection available (Dublin Workshop).
✓ Installation: Professional installation service available (Ireland & NI).

Product Overview

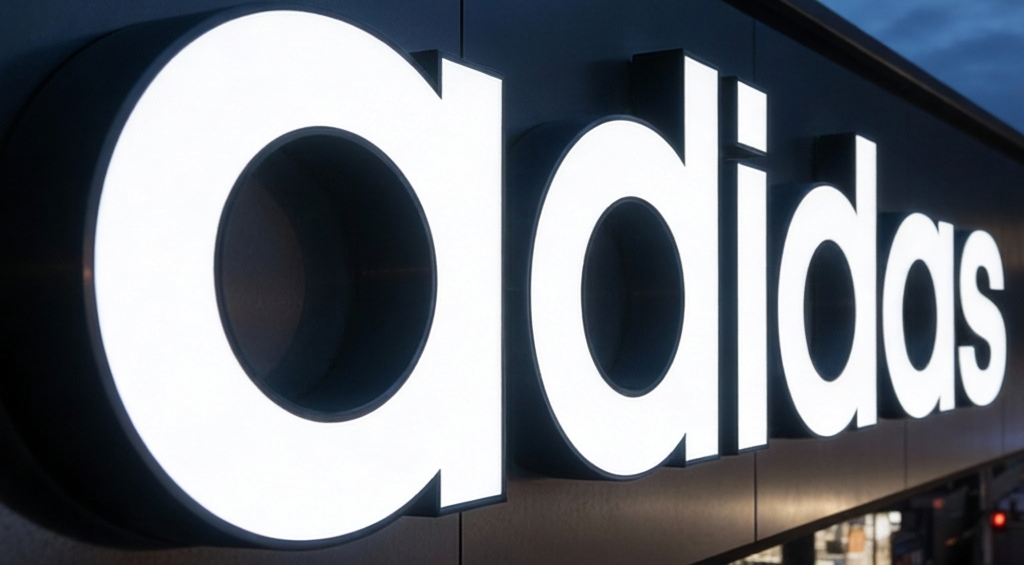

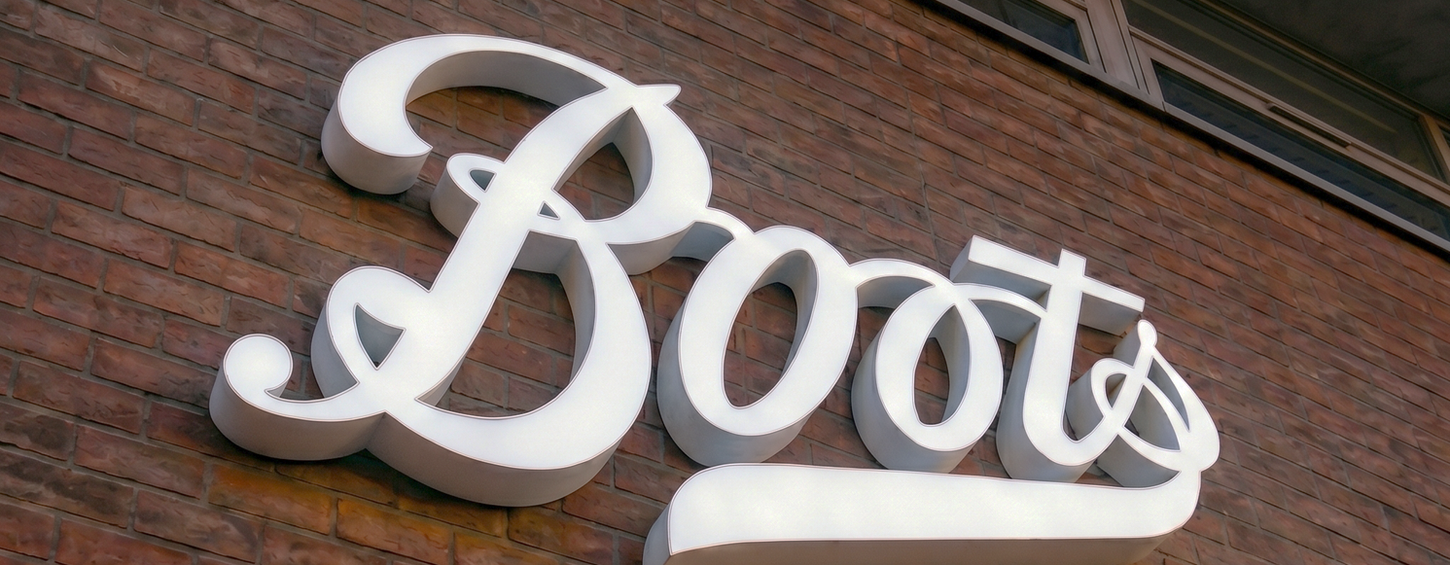

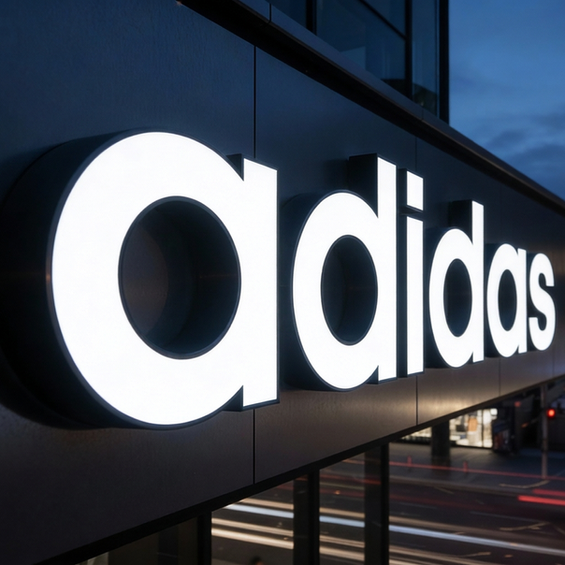

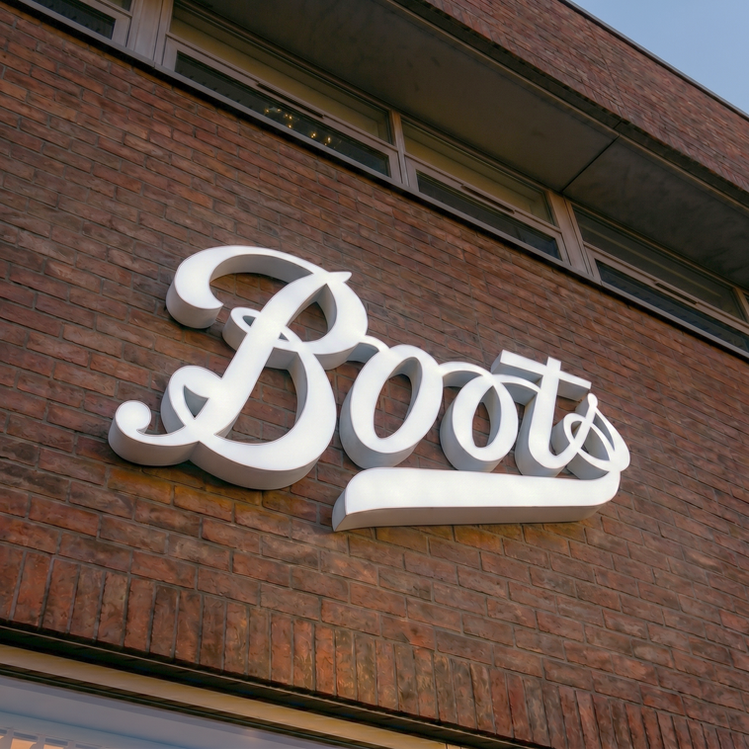

Custom dimensional letters with front illumination. We do not hold stock. You provide the vector file and height, and we fabricate the units.

For standard and large letters, the returns (sides) are formed from welded aluminium with opal acrylic or polycarbonate faces mechanically fixed or bonded. For small or intricate letters, we 3D print the face and return as a single unit using PETG. The back tray is CNC-routed Aluminium Composite (ACM) for large letters or 3D printed PETG for smaller units. Returns are finished with 2K automotive paint or 10-year exterior grade paint.

Technical Specifications

Size: Custom. Built to your exact dimensions.
Face Material:
Standard/Large: Opal Acrylic or Polycarbonate.
Small/Intricate: 3D Printed Translucent PETG (Unitary construction).
Return Material (Sides):
Standard/Large: Welded Aluminium strip.
Small/Intricate: 3D Printed PETG.
Back Tray: Aluminium Composite (ACM) or 3D Printed PETG.
Finish (Returns): Wet sprayed 2K Automotive Paint or 10-Year Exterior Paint.
Note: A RAL or Pantone reference is required for colour matching.
Illumination: High-efficiency LED modules.
Colour Options: Cool White (6000K), Warm White (3000K), or Coloured.
Power: Transformer supplied for remote mounting.
Wiring: Individual tails per letter (requires series/parallel connection behind wall).
Mounting: Back tray fixes directly to the wall; letter shell bridges over the tray.
Note: Wall fixings (plugs/screws) are not supplied. 1:1 drilling template included.

Get a Quote: Please submit your vector file and specifications to receive a formal estimation. As every set is custom-built, pricing is calculated based on material usage, stroke width, and fabrication time.
